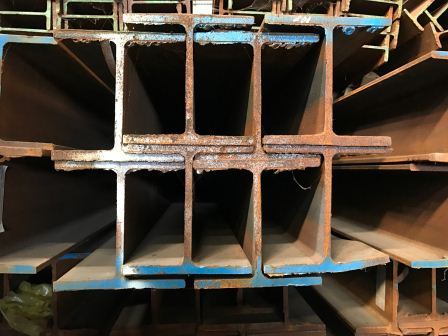

Introduce	. I-shaped steel is shaped like an I, having the same upper and lower edges and half the body. . At first, it is usually dark green, but it is often left outdoors so it appears yellow clay quickly. . Body height from 100-800mm wing width from 50-400mm. Common length is 6m or 12m




Uses	Application in construction of prefabricated workshops, mechanical industry, crane beams, platforms, and other bearing structures, ...



Steel Mark	SS400, GOST, JIS, Q, BS, KS, TCVN
Origin	Origin: China, Korea, Taiwan, Japan, Vietnam ...

2-020 2-021 2-022 2-023 2-024 2-025

Giá:

Liên hệ

Standard size (mm)					Cross-sectional area (cm2)	Unit weight (kg / m)	Moment of inertia (cm4)		Inertial radius (cm)		Modulus of section bending resistance (cm3)
HxB	t1	t2	r1	r2	A	W	Ix	Iy	ix	iy	Zx	Zy
I100x75	5.0	8.0	7.0	3.5	16.43	12.9	281	47.3	4.14	1.70	56.2	12.6
I125x75	5.5	9.5	9.0	4.5	20.45	16.1	538	57.5	5.13	1.68	86.0	15.3
I150x75	5.5	9.5	9.0	4.5	21.83	17.1	819	57.5	6.12	1.62	109.0	15.3
I150x125	8.5	14.0	13.0	6.5	46.15	36.2	1,76	385	6.18	2.89	235.0	61.6
I180x125	6.0	10.0	10.0	5.0	30.06	23.6	1,67	138	7.45	2.14	186.0	27.5
I200x100	7.0	10.0	10.0	5.0	33.06	26.0	2,17	138	8.11	2.05	217.0	27.7
I200x150	9.0	16.0	15.0	7.5	64.16	50.4	4,46	753	8.34	3.43	446.0	100.0
I250x125	7.5	12.5	12.0	6.0	48.79	38.3	5,18	337	10.30	2.63	414.0	53.9
I250x125	10.0	19.0	21.0	10.5	70.73	55.5	7,31	538	10.20	2.76	585.0	86.0
I300x150	8.0	13.0	12.0	6.0	61.58	48.3	9,48	588	12.40	3.09	632.0	78.4
I300x150	10.0	18.5	19.0	9.5	83.47	65.5	12,7	886	12.30	3.26	849.0	118.0
I300x150	11.5	22.0	23.0	11.5	97.88	76.8	14,7	1,08	12.20	3.32	978.0	143.0
I350x150	9.0	15.0	13.0	6.5	74.58	58.5	15,2	702	14.30	3.07	870.0	93.5
I350x150	12.0	24.0	25.0	12.5	111.10	87.2	22,4	1,18	14.20	3.26	1,280.0	158.0
I400x150	10.0	18.0	17.0	8.5	91.73	72.0	24,1	864	16.20	3.07	1,200.0	115.0
I400x150	12.5	25.0	27.0	13.5	122.10	95.8	31,7	1,24	16.10	3.18	1,580.0	165.0
I450x175	11.0	20.0	19.0	9.5	116.80	91.7	39,2	1,51	18.30	3.60	1,740.0	173.0
I450x175	13.0	26.0	27.0	13.5	146.10	115.0	48,8	2,02	18.30	3.72	2,170.0	231.0
I600x190	13.0	25.0	25.0	12.5	169.40	133.0	98,4	2,46	24.10	3.81	3,280.0	259.0
I600x190	16.0	35.0	38.0	19.0	224.50	176.0	130	3,54	24.10	3.97	4,330.0	373.0

1. MECHANICS OF COMMON CARBON STEEL STRUCTURE:
Steel Mark	Flow limit (MPa) ≥ (1) (2)			Tensile strength δb (MPa)	Elongation ≥		Bend 108o r radius inside a length or diameter
Steel Mark	Thickness or diameter (mm)			Tensile strength δb (MPa)	Thickness or diameter (mm)	δ (%)
	≤ 16	> 16	> 40		Thickness or diameter (mm)	δ (%)
SS330	205	195	175	330 ~430	Flat plate ≤ 5 > 5 ~ 16 16 ~ 50 > 40	26 21 26 28	r = 0.5a
SS330	205	195	175	330 ~430	Bars, corners ≤ 25	25 30	r = 0.5a
SS400	245	235	215	400 ~510	Flat plate ≤ 5 > 5 ~ 16 16 ~ 50 > 40	21 17 21 23	r = 1.5a
SS400	245	235	215	400 ~510	Bars, corners ≤ 25 > 25	20 24	r = 1.5a
SS490	280	275	255	490 ~605	Flat plate ≤ 5 > 5 ~ 16 16 ~ 50 > 40	19 15 19 21	r = 2.0a
SS490	280	275	255	490 ~605	Thanh, góc ≤ 25 > 25	18 21	r = 2.0a
SS540	400	390	-	540	Bars, corners ≤ 5 > 5 ~ 16 16 ~ 50 > 40	16 13 17	r = 2.0a
SS540	400	390	-	540	Bars, corners ≤ 25 > 25	13 17	r = 2.0a
(1) Thickness or diameter> 100mm, yield strength or flow resistance SS330 is 165 MPa, SS400 is 245 MPa. (2) Steel thickness> 90mm, each increase in 25mm thickness elongation decreases by 1% but decreases the most to only 3%.

2. MECHANICAL STEEL WELDING STRUCTURE:
Steel Mark	Flow limit (MPa) ≥						Tensile		Elongation ≥		Akv (0oC)/J
	Thickness or diameter (mm)						Thickness or diameter (mm)		Thickness or diameter (mm)	δ (%)
	<16	16 ~ 40	40 ~ 75	75 ~ 100	100 ~ 160	160 ~ 200	<100	100 ~ 200	Thickness or diameter (mm)	δ (%)
SM400A SM400B SM400C	245	235	215	215	205	195	400 ~ 510	400 ~ 510	< 5 5 ~ 16 16 ~ 50 > 40	23 18 22 24	- ≥ 27
SM400A SM400B SM400C	245	235	215	215	-	-	400 ~ 510	400 ~ 510	< 5 5 ~ 16 16 ~ 50 > 40	23 18 22 24	≥ 47
SM 490A SM 490B SM 490C	325	315	295	295	228	275	490 ~ 610	490 ~ 610	<5 5 ~ 16 16 ~ 50 > 40	22 17 21 23	≥ 27
SM 490A SM 490B SM 490C	325	315	295	295	-	-	490 ~ 610	490 ~ 610	<5 5 ~ 16 16 ~ 50 > 40	22 17 21 23	≥ 47
SM490YA SM490YB	365	355	335	325	-	-	490 ~ 610	-	< 5 5 ~ 16 16 ~ 50 > 40	19 15 19 21	-
SM490YA SM490YB	365	355	335	325	-	-	490 ~ 610	-	< 5 5 ~ 16 16 ~ 50 > 40	19 15 19 21	≥ 27
SM520B SM520C	365	355	335	325	-	-	520 - 640	-	< 5 5 ~ 16 16 ~ 50 > 40	19 15 19 21	≥ 27
SM520B SM520C	365	355	335	325	-	-	520 - 640	-	< 5 5 ~ 16 16 ~ 50 > 40	19 15 19 21	≥ 47
SM 570	460	450	430	420	-	-	570 - 720	-	< 16 > 16 > 20	19 26 20	≥ 47 (-50C)

News mark	old mark	C (%)	(%) (%) (%)		≤	(%) ≤	Conditions attached
Ordinary carbon steel [JIS G3101 (1981)]							Steel structure thickness (mm) ≤ 50 >50 ~ 200
SS330	S34	-	-	-	0.050	0.050
SS400	S41	-	-	-	0.050	0.050
SS490	SS50	-	-	-	0.050	0.050
SS540	SS55	≤ 0.30	-	1.60	0.040	0.040
Welded structural steel [JIS G3106 (1992)]
SM400A	SM41A	≤ 0.23 ≤ 0.25	- -	≥ 2.5 X C ≥ 2.5 X C	0.035 0.035	0.035 0.035
SM400B	SM 41B	≤ 0.20 ≤ 0.22	≤ 0.35 ≤ 0.35	0.60 ~ 1.00 0.60 ~ 1.00	0.035 0.035	0.035 0.035	≤ 50 >50 ~ 200
SM400C	SMC	≤ 0.18	≤ 0.35	≤ 1.4	0.035	0.035	≤ 100
SM490A	SM50A	≤ 0.20	≤ 0.55	≤ 1.60	0.035	0.035	≤ 50
SM490A	SM50A	≤ 0.22	≤ 0.55	≤ 1.60	0.035	0.035	> 50 ~ 200
SM490B	SM50B	≤ 0.18	≤ 0.55	≤ 1.60	0.035	0.035	≤ 50
		≤ 0.22	≤ 0.55	≤ 1.60	0.035	0.035	> 50 ~ 200
SM490C	SM50C	≤ 0.18	≤ 0.55	≤ 1.60	0.035	0.035	≤ 100
SM490YA	SM50YA	≤ 0.20	≤ 0.55	≤ 1.60	0.035	0.035	≤ 100
SM490YB	SM50YB	≤ 0.20	≤ 0.55	≤ 1.60	0.035	0.035	≤ 100
SM520B	SM53B	≤ 0.20	≤ 0.55	≤ 1.60	0.035	0.035	≤ 100
SM520C	SM53C	≤ 0.20	≤ 0.55	≤ 1.60	0.035	0.035	≤ 100
SM570(1)	SM58	≤ 0.18	≤ 0.55	≤ 1.60	0.035	0.035	≤ 100
(1) Carbon content (Ce) of SM570 steel grade, thickness ≤ 50mm is ≤ 0.44%, from 50 - 100mm ≤ 0.47%
